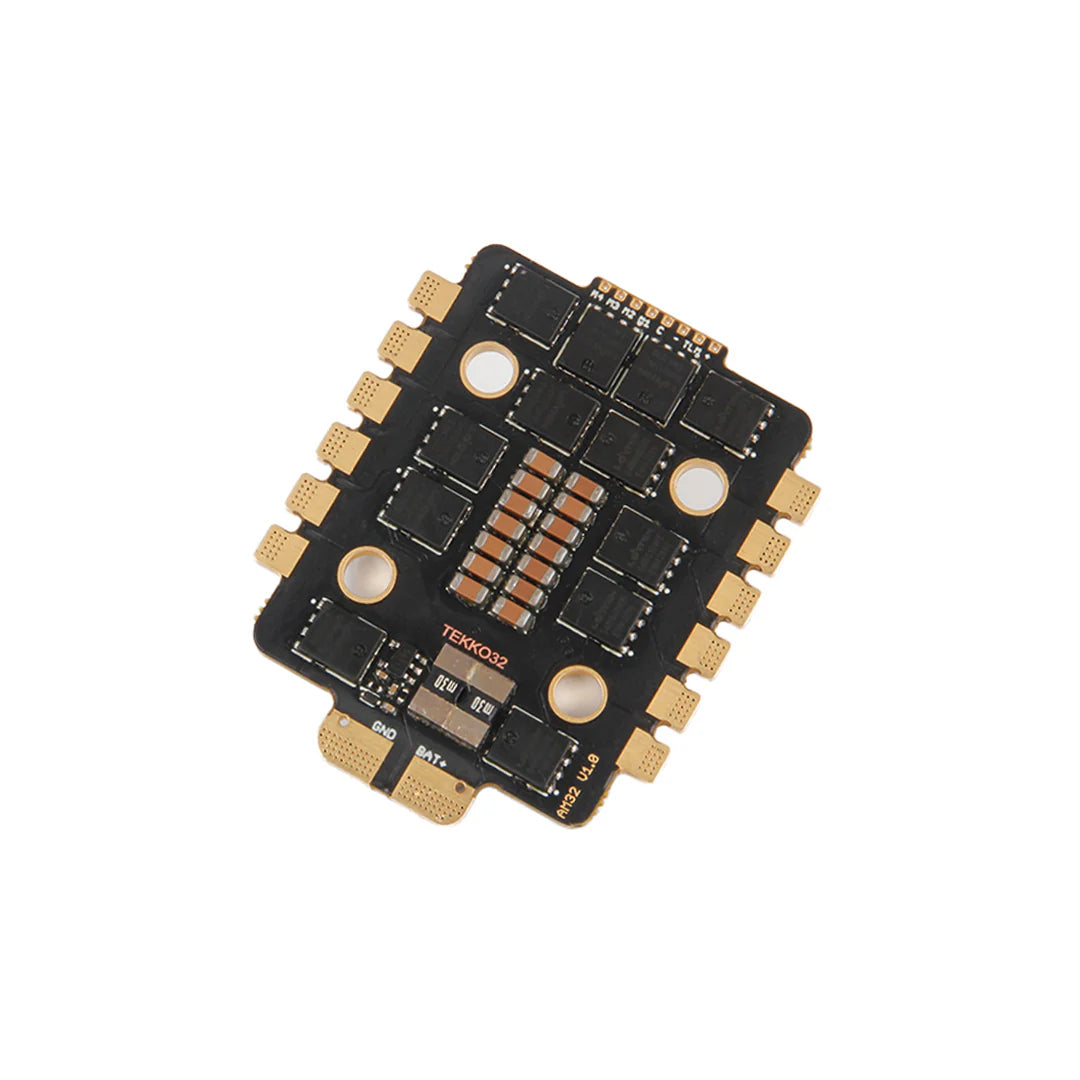

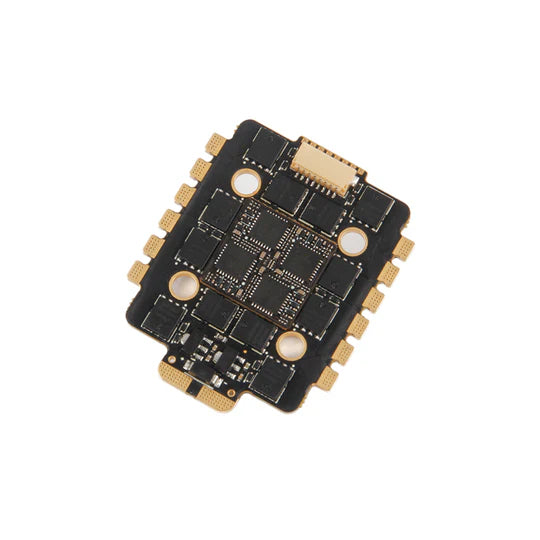

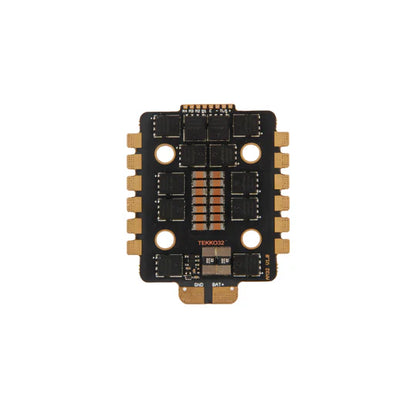

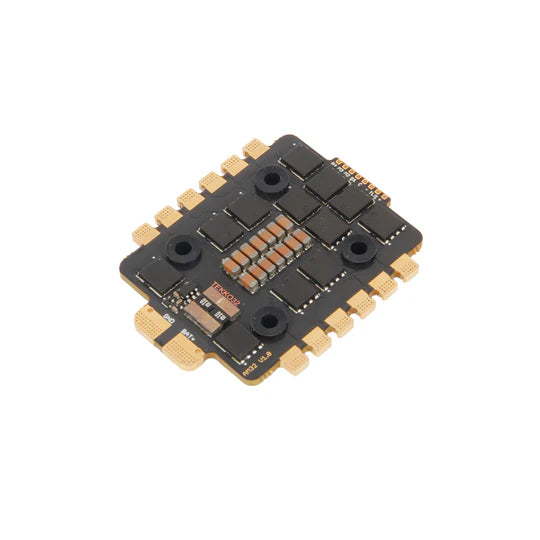

Tekko32 F4 4in1 Mini 50A ESC (AM32)

Tekko32 F4 4in1 Mini 50A ESC (AM32)

€76,95 EUR
€76,95 EUR
Allahindlus Välja müüdud
Sisaldab käibemaksu. Saatmiskulud arvutatakse kassas.

Feature:

  • All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification:

  • Continuous current: 50A x4
  • Burst current: 60A x4
  • Battery support: 4-6S
  • PWM frequency: 8k to 96k
  • Support DShot 150/300/600/1200
  • Support MultiShot/OneShot/Proshot/PWM, etc.
  •  ESC Telemetry Support
  • Onboard analog current sensor
  • AM32 Firmware
  • 1000uf 35v capacitor included
  • Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)

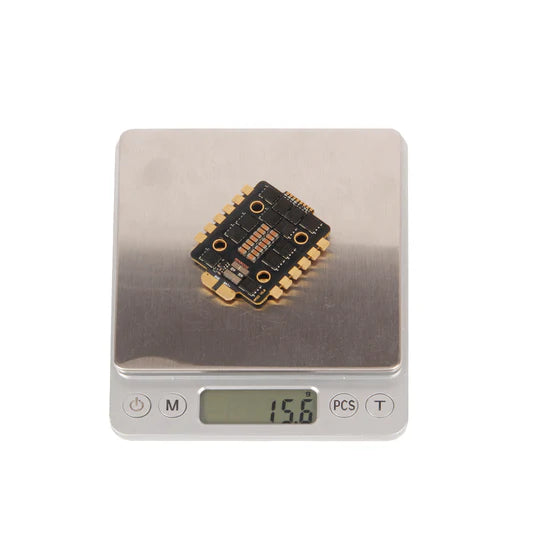

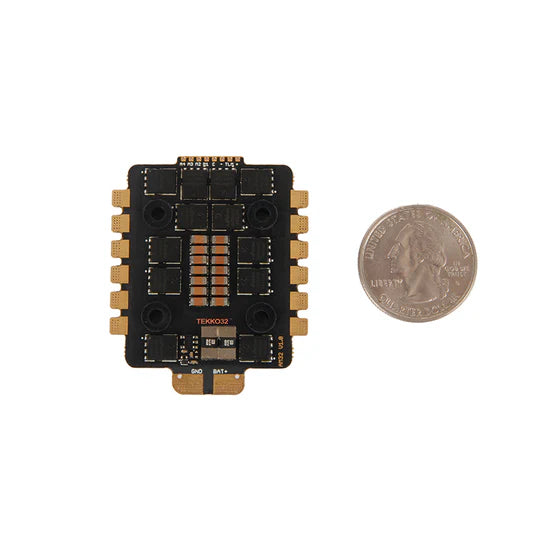

  • Dimensions: 46.6x38x6mm / Weight: 15.6g
  • Firmware target: AM32_F4A_4IN1_F421

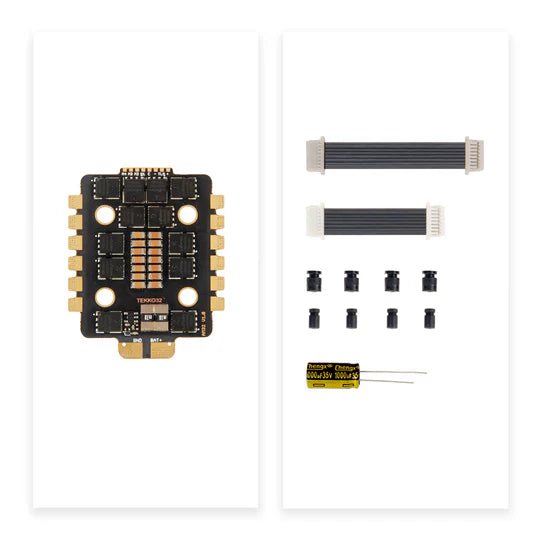

Package Included:

  • Tekko32 F4 4 in 1 mini 50A ESC *1
  • M2 Anti-Vibration Silicone Grommet Insert *4
  • M3 Anti-Vibration Silicone Grommet Insert *4
  • Electrolytic capacitor: 1000uF 35v *1
  • 8pin to 8pin 1mm pitch 65mm cable*1
  • 8pin to 8pin 1mm spacing 25mm cable*1
Vaata kõiki üksikasju
