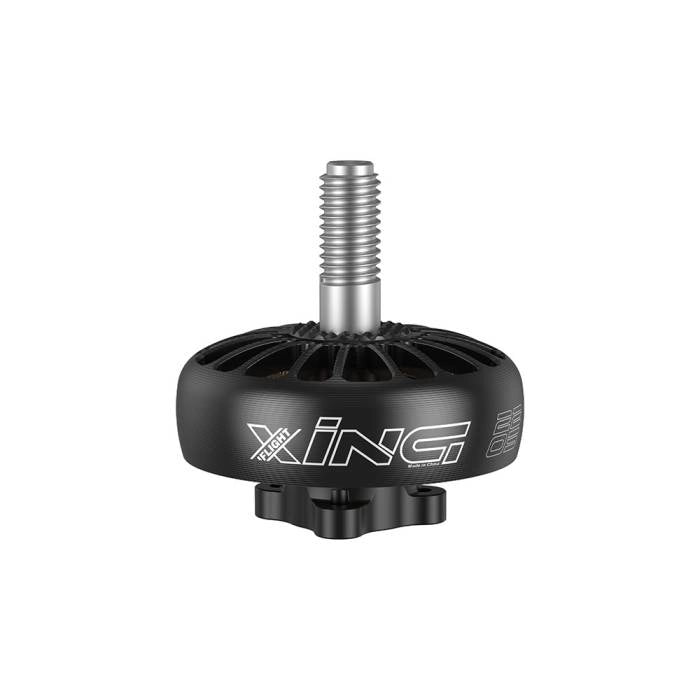

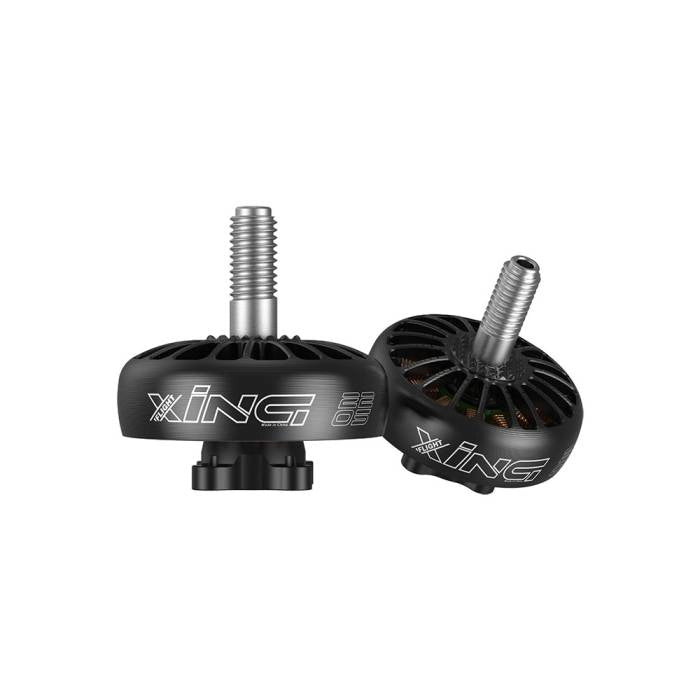

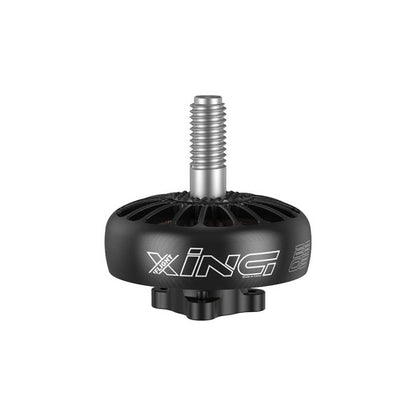

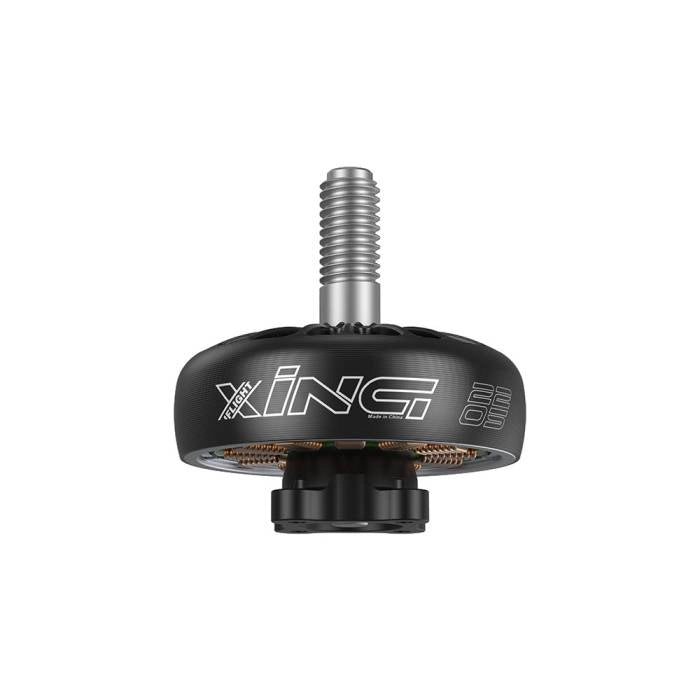

iFlight XING2 2205 FPV Motor

The iFlight XING2 2205 Motor (Unibell) is built for smooth, reliable FPV performance in a lightweight package. Featuring a high-strength steel shaft, precision Japanese NSK bearings, and N52H curved magnets, it delivers efficiency, durability, and responsive power for freestyle and racing drones. With protective wiring, dynamic balancing, and a sleek Unibell design, this motor combines strength and style in one of the most trusted motor platforms in FPV.

• Dynamically balanced for smooth performance
• High-strength 5mm steel shaft
• Precision NSK bearings
• Durable Unibell design
• Protected motor wires
• N52H curved magnets

• KV: 2300KV
• Weight(included wire): 23.7g / 24.6g / 25.3g
• Dimension: φ28.6*29.5mm(2300KV) / 28.6*29.55(2450KV/3200KV)
• Interphase Resistance: 72.41mΩ / 50.63mΩ / 77.4mΩ
• Input Volts: 25.2/ 2-4S / 24V
• Peak Current: 17.91A / 33.06A / 38.43A
• Max Watt: 451.33W / 548.1W / 910W
• Mounting Holes: 12*12 φ2mm
• Rotor Specifications: Unibell
• Shaft Diameter: 4mm(3200KV)/5mm(2300KV/2450KV)
• Shaft Protruding Length: 13.5mm
• Lead: 160mm/22AWG
• Magnet: N52H Curved
• Configuration: 12N14P
• Bearing Type: NSK
• Bearing Specification: φ8*φ3*4
• Winding: Single Strand copper winding

• 1x iFlight XING2 2205 Motor (Unibell)
• 1x Hardware Kit
