Happymodel ELRS Nano 2.4GHz EP1 RX

Features

• Designed by Jye Smith on the ExpressLRS development team.
• TM32L432KBU6 MCU and SX1280 RF chip.
• High-refresh-rate RF module
• Ceramic Antenna

Specifications

EP1_RX

• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz
• RF Chip: SX1280IMLTRT RF Module
• Weight: 0.42gram(without antenna)
• Antenna: Omnidirectional antenna
• Dimension: 10mm*10mm*3mm
• Firmware Target:aec8ad82
• Firmware Upload: WiFi
• Working voltage: 5v
• Peak gain: 2.23dB
• MCU: ESP8285
• Type: ISM

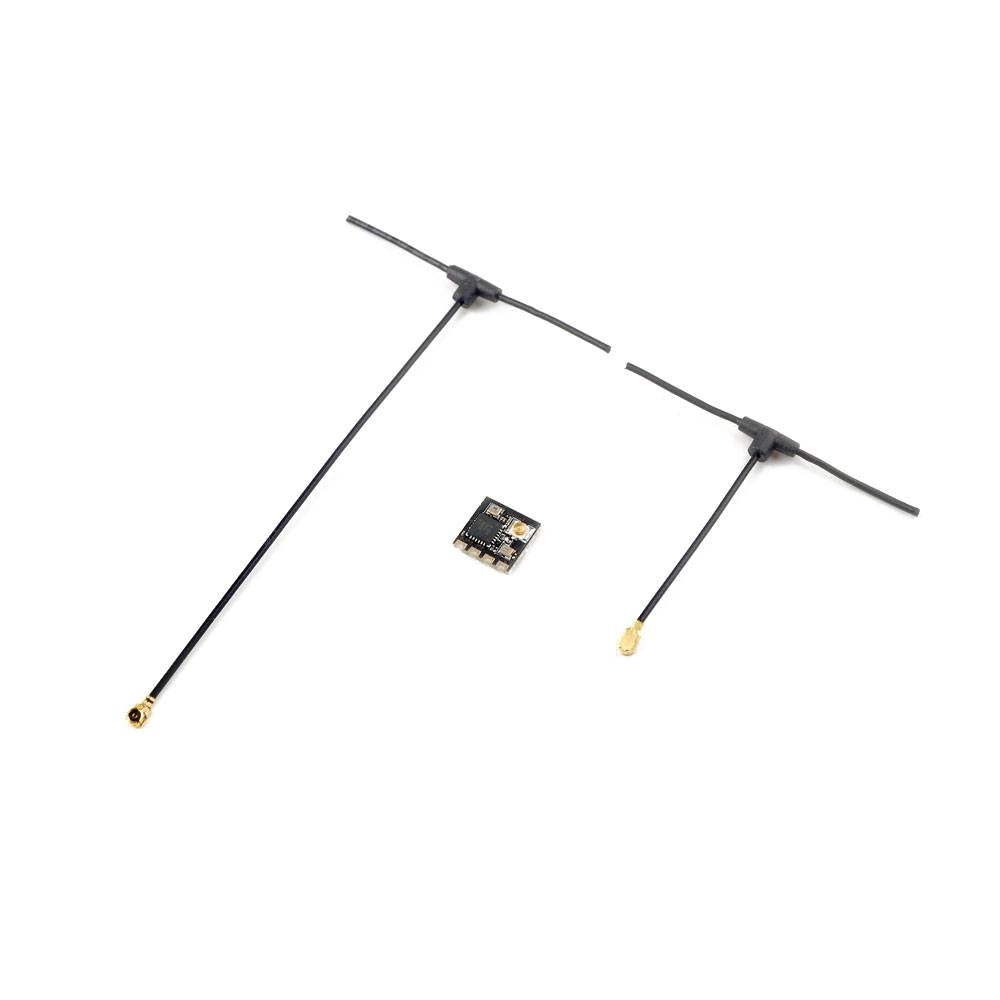

Includes

• 1x Happymodel ExpressLRS Nano 2.4GHz EP1 RX
• 1x 40mm Omnidirectional antenna
• 1x 90mm Omnidirectional antenna
