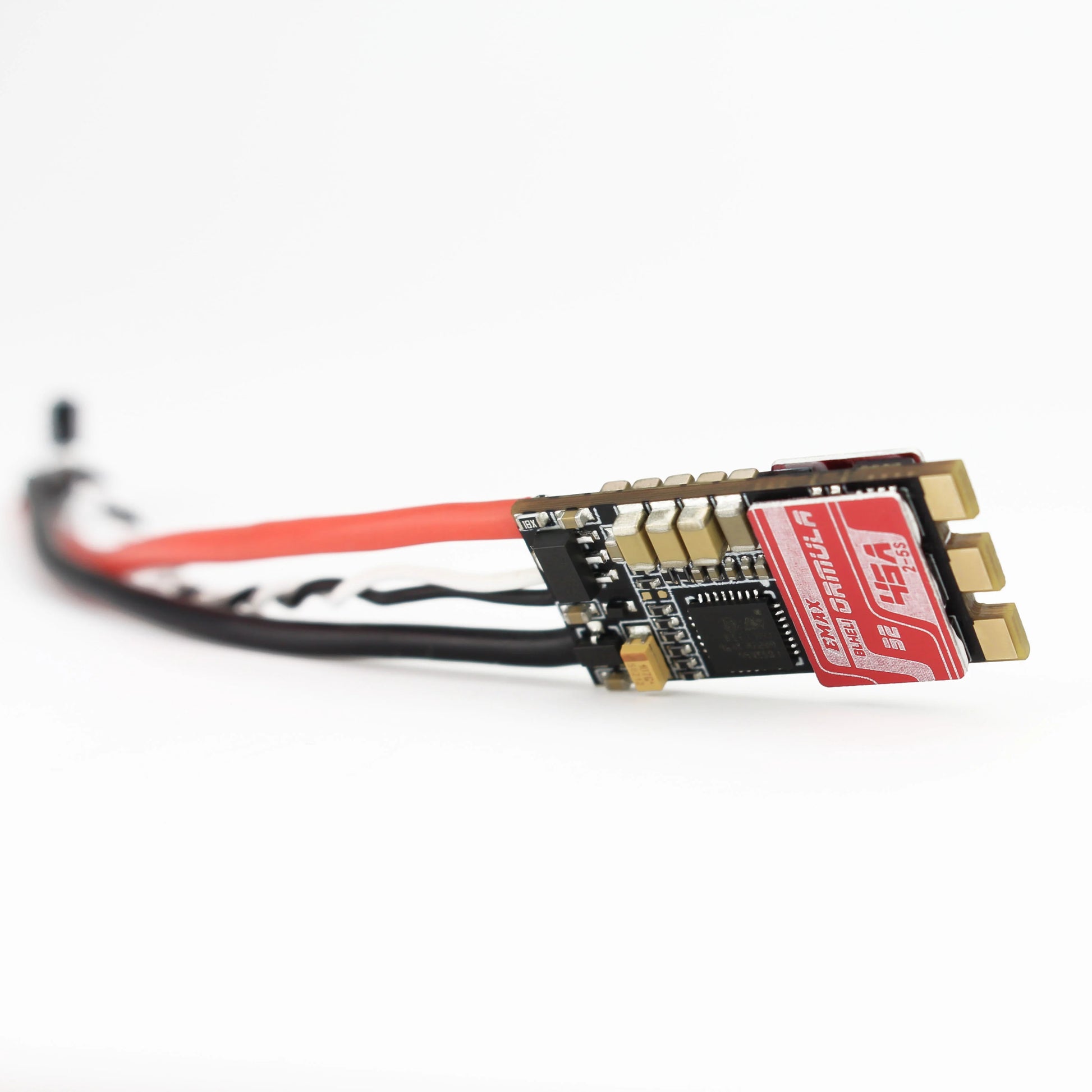

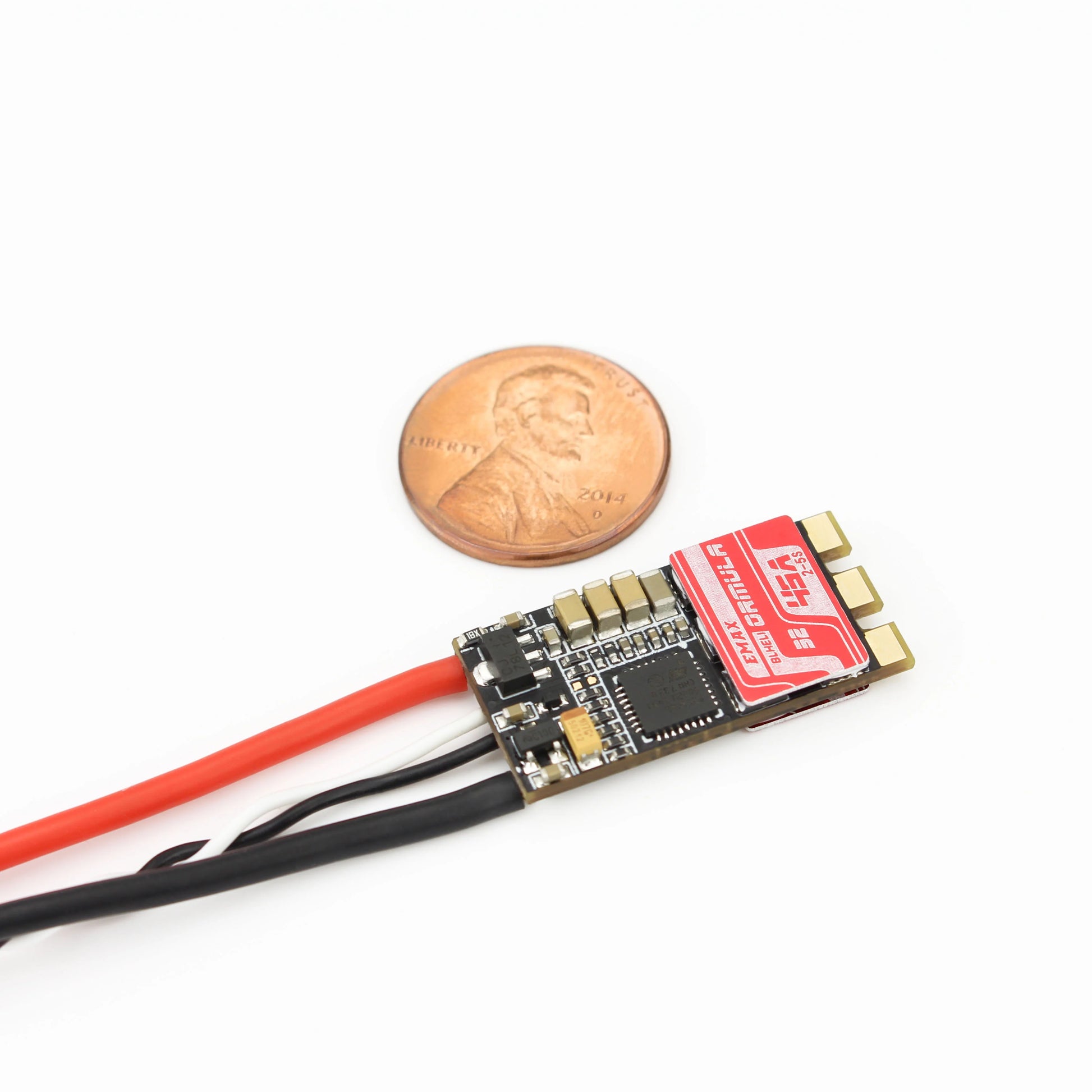

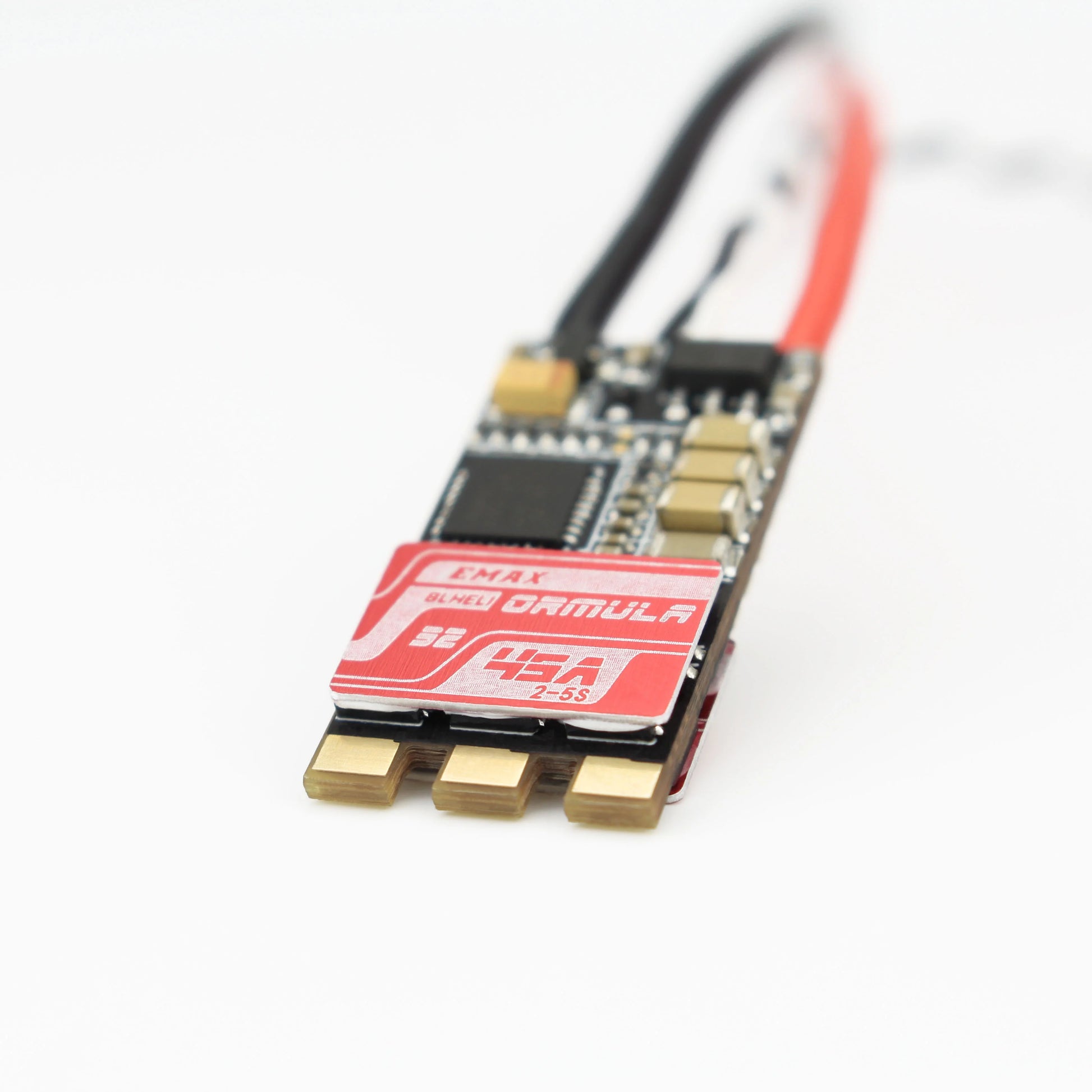

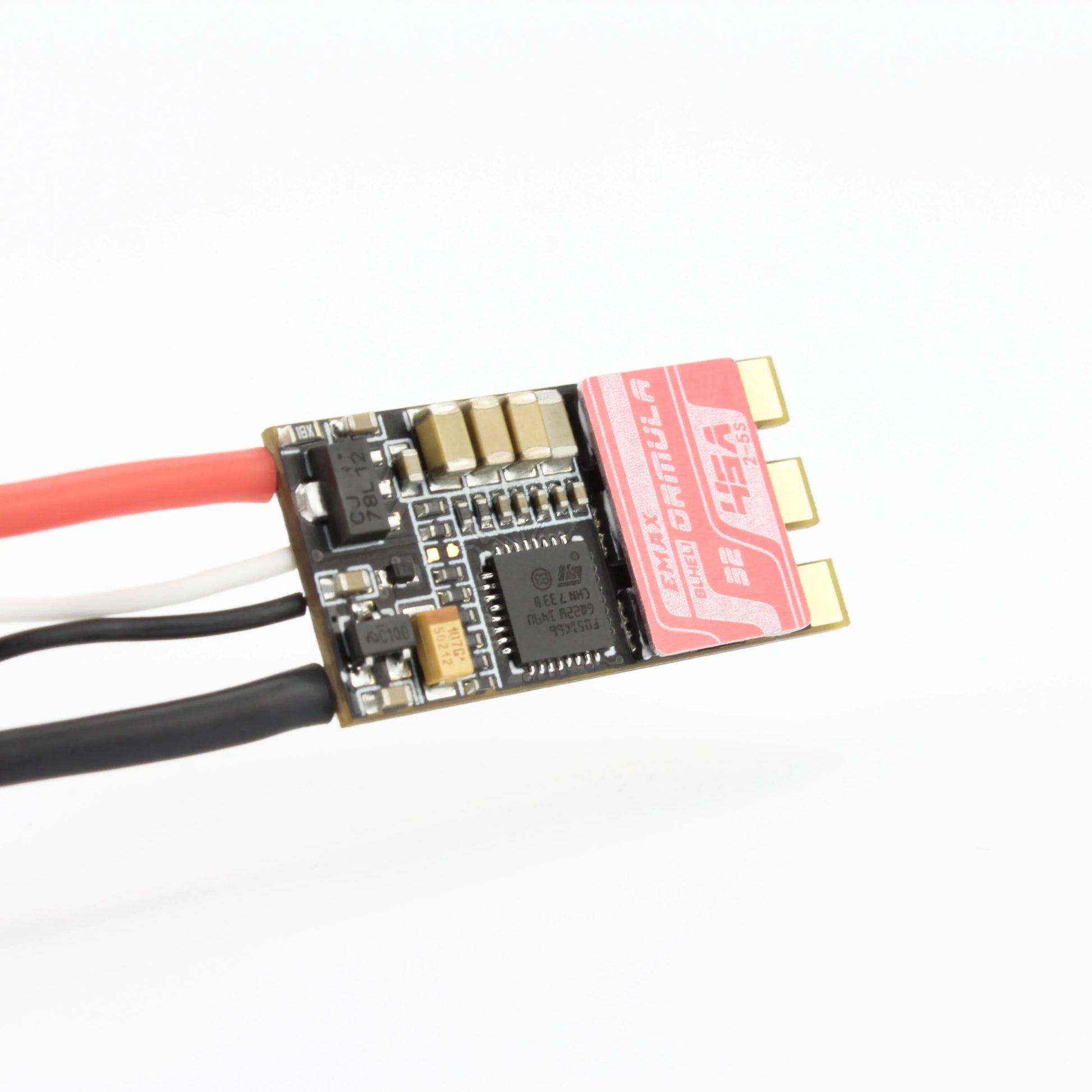

EMAX Formula Series 45A ESC support BLHELI_32 2-5S

Description

The EMAX Formula32 speed controller is the first controller of the series with BLHeli_32 firmware and DShot 1200 protocol. The ESC is ultra lightweight and compact, yet delivers up to 55A peak load current. Aluminum plates on both sides of the board effectively dissipate heat and cool the regulator.

Specifications

Firmware: BLHeli_32 bit
Chip: STM32F051
Power supply: 2-5S
Current: 45A (55A peak load up to 10sec)
Wire: 18 AWG
Dimensions: 27.6 x 13.6 mm
Weight: 5.8g (with wires)
